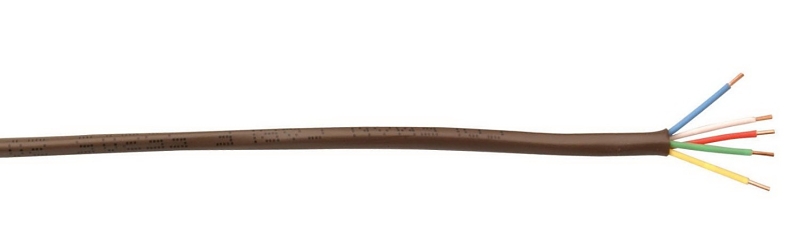

CCI 552050407 Thermostat Wire, 20 AWG Wire, 5 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath

CCI

CCI 552050407 Thermostat Wire, 20 AWG Wire, 5 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath

$152.69$152.69
CCI 552050407 Thermostat Wire, 20 AWG Wire, 5 -Conductor, Copper Conductor, Polypropylene Insulation, PVC Sheath
  • Conductor Insulation: Polypropylene
  • Conductor Material: Copper
  • Number of Conductors: 5
  • Operating Temperature: -20 to 60 deg C
  • Resistance: 10.73 Ohm
  • Model #: 552050407
  • UPC #: 029892352110
  • SKU: 2700821

Your shopping list will be used for pickup in-store

Product Details

CCI Thermostat Wire, Type CL-2, 20 AWG Wire, 5 Conductors, Copper Conductor, Polypropylene Conductor Insulation, Solid, PVC Sheath, Brown Sheath, 150 V, 10.73 Ohm Resistance, -20 to 60 deg C Operating

Key Features

  • 0015 in jacket thickness
  • 0006 in insulation thickness
  • Parallel lay length
  • Smooth jacket eliminates snagging and tearing
  • PVC jacket, polypropylene insulation ensures excellent strip ability
  • Sunlight resistant jacket

Item Specifications

Conductor InsulationPolypropylene
Conductor MaterialCopper
Number of Conductors5
Operating Temperature-20 to 60 deg C
Resistance10.73 Ohm
Sheath ColorBrown
Sheath MaterialPVC
Stranded/SolidSolid
TypeType CL-2
Voltage Rating150 V
Wire Size20 AWG
MORE DETAILS:
  • Application: For thermostat control applications
