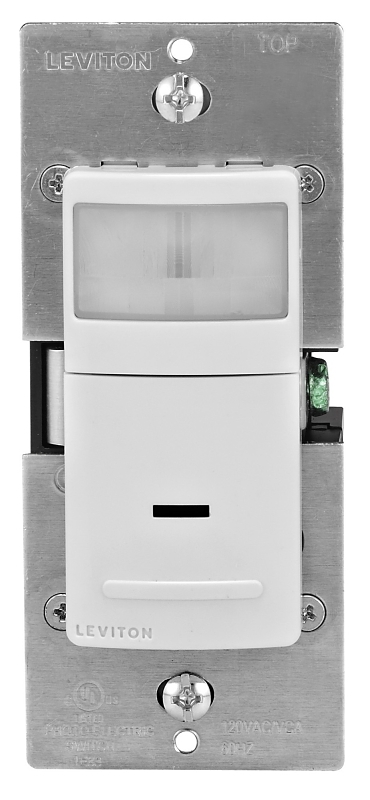

Leviton R02-IPS02-1LW Motion Detector, 2.5 A, 120 V, 1-Pole, Motion Sensor, 180 deg Sensing, 900 sq-ft Sensing, White

Leviton

Leviton R02-IPS02-1LW Motion Detector, 2.5 A, 120 V, 1-Pole, Motion Sensor, 180 deg Sensing, 900 sq-ft Sensing, White

$27.25$27.25
Leviton R02-IPS02-1LW Motion Detector, 2.5 A, 120 V, 1-Pole, Motion Sensor, 180 deg Sensing, 900 sq-ft Sensing, White
  • Color: White
  • Current Rating: 2.5 A
  • Frequency Rating: 60 Hz
  • Lamp Type: CFL Halogen Incandescent LED
  • Mounting Type: Wallbox
  • Model #: DOS02-R02-1LW
  • UPC #: 078477572559
  • SKU: 1985738

Your shopping list will be used for pickup in-store

Product Details

Leviton's IPV02/IPS02 universal vacancy and occupancy sensors combine state-of-the-art technology with new aesthetics to provide optimal management of lighting and motor loads and a choice of either Manual-On (vacancy sensor) or Automatic-On (occupancy sensor) switching. These energy-saving sensors are engineered to control current LED, CFL, Electronic and Magnetic Low Voltage and incandescent loads and ensure that lights/motors will turn On manually (vacancy) or automatically (occupancy) and turn OFF automatically when motion is no longer detected within the covered range. All models have screw terminals for easy installation and do not require a neutral wire for connection. The IPV02/IPS02 is single pole, relay-based and designed to replace a single pole switch for loads such as exhaust fans.

Key Features

  • Universal light control switches incandescent, CFL, LED, electronic low voltage and magnetic low voltage loads using relay technology
  • Auto-On/auto-Off operation for seamless energy management
  • Low-profile design eliminates an obtrusive "scanning device" look
  • Elegant styling compliments any interior and coordinates with Leviton's popular line of Decora® wiring devices
  • Convenient push-button provides manual Off light switching at any time
  • Segmented lens provides optimum sensitivity and performance
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings
  • LED indicator light flashes when sensor detects motion to verify detection is active
  • Fits in standard wall box and replaces single-pole wall switch
  • Neutral wire not required, suitable for retrofit and new construction applications

Item Specifications

ColorWhite
Current Rating2.5 A
Frequency Rating60 Hz
Lamp TypeCFL Halogen Incandescent LED
Mounting TypeWallbox
Number of Poles1
Sensing Angle180 deg
Sensing Range900 sq-ft
Sensor TypeMotion
Temperature Rating0 to 40 deg C
Timer Range30 s to 30 min
TypeUniversal
Voltage Rating120 V
Wattage Rating150 W
MORE DETAILS:
  • Application: For bathrooms, basements, bedrooms, dining rooms, garages, hallways, kitchens, living/family rooms and utility/laundry room
  • Warranty: 5 Year Limited
